3 Cores +1 Grounding Power Cable

3core 1 grounding power Cable

The structure of the 3core 1 grounding power Cable is designed for applications that require grounding according to customer requirements. This 3-core and grounding cable/wire is usually called 3-core+1 cable XLPE, with an insulation voltage of 0.6/1000v or IEC 60502 3-core and grounding cable.

The 3-core plus ground wire has three conductors, which are coded in three different colors, plus grounding. One of the main applications of this three-core and earth lighting cable is when two-way lighting is required, it provides an additional conductor between two switches operating the same luminaire.

Hold one provides customers with high quality 1mm, 1.5mm, 2.5mm 3-core and 50m/100m grounding cables, RFQ now!

Description of 3core 1 grounding power Cable

Rated Temperature: 90℃

Rated Voltage: 600/1000V

Reference Standard: IEC60502

Conductor: Shaped and circular stranded copper conductors

Insulated: Insulated with cross-link polyethylene

Compound

PVC bedded

Flame retardant PVC sheathed overall

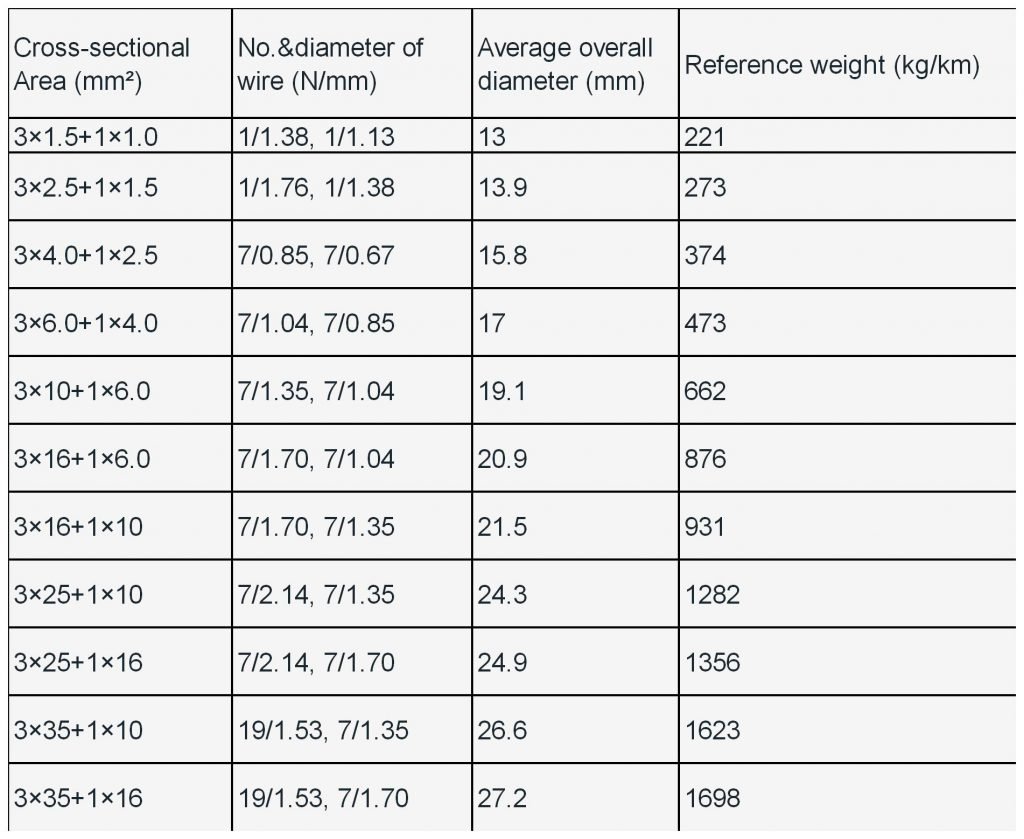

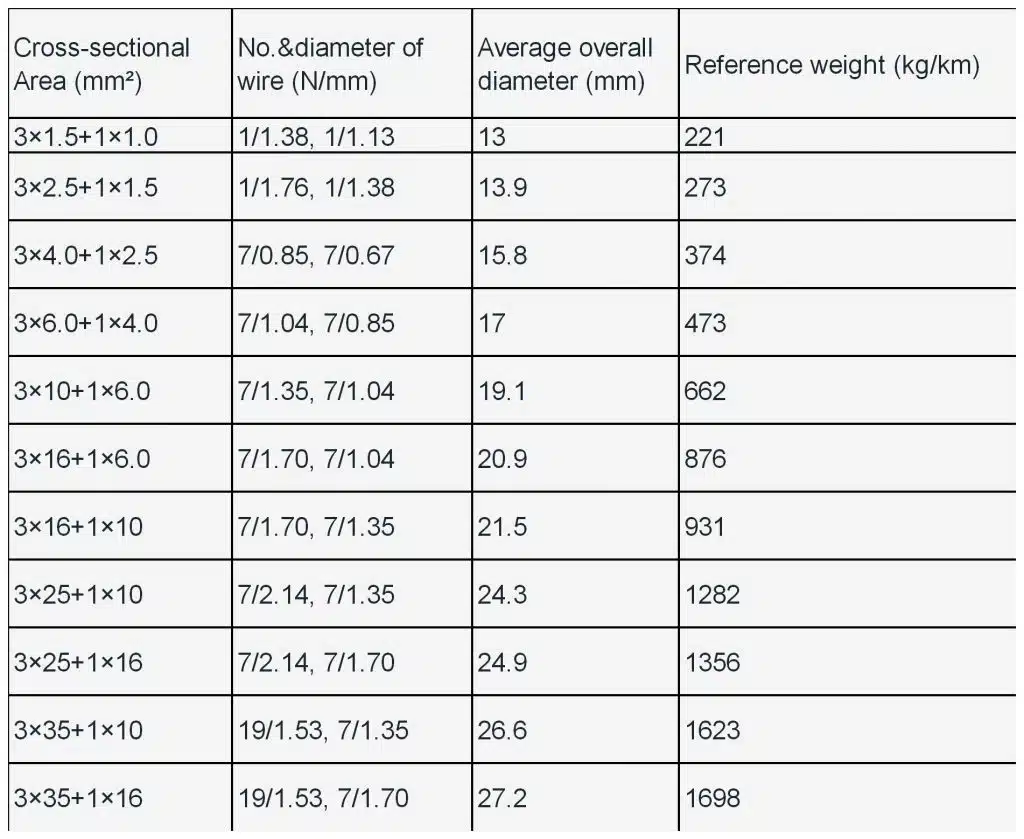

3core 1 grounding power Cable parameters

Recommended ordering parameters

If you can quote/supply in time, please ensure that your inquiry and your order are to ensure the following data:

1 International or special standards. (Or, the precise use of the cable.

2 Rated voltage.

3 Copper or aluminum conductor.

4 The size of each conductor.

5 Insulation material: PVC XLPE or other materials.

6 Number and identification of conductors.

7 Other requirements.

8 Packaging.

9 Delivery time required.

10 Validity of requirements.

Be applicable

The shaft, water and soil can withstand greater positive pressure.
